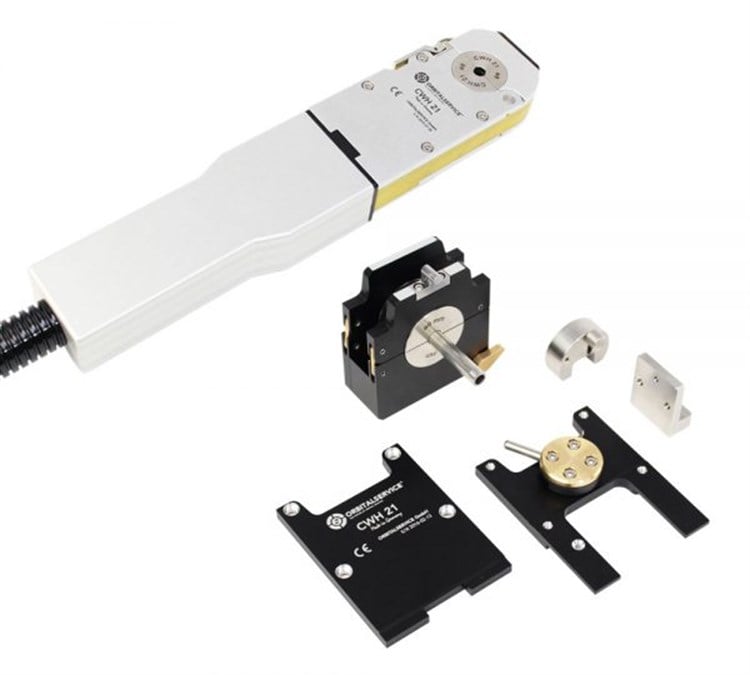

CWH 21 CLOSED WELD HEAD (CWH21100)

3,17mm-21,3mm dış çaplı borular için hat üstü kullanıma uygun, kapalı orbital kaynak başlığı.

With its’ dimensions the weld head ist the slimmest weld head in its’ area of application worldwide. The unique clamping system made of spring steel, enables the operator a comfortable usage, is inexpensive and can be readjusted several times. With different clamping jaw-side parts and a clamping block, the weld head can be reconstructed into a self-clamping and self-centering weld head. The components which have to be welded are put into the clamping block, clamped and the block is put into the weld head. The operator saves the sewing-process and can weld the components in a centered way together.

Accessories

• Clamping jaws in different dimensions from 3 mm up to 21,3 mm
• Side parts for clamping block
• Clamping block
