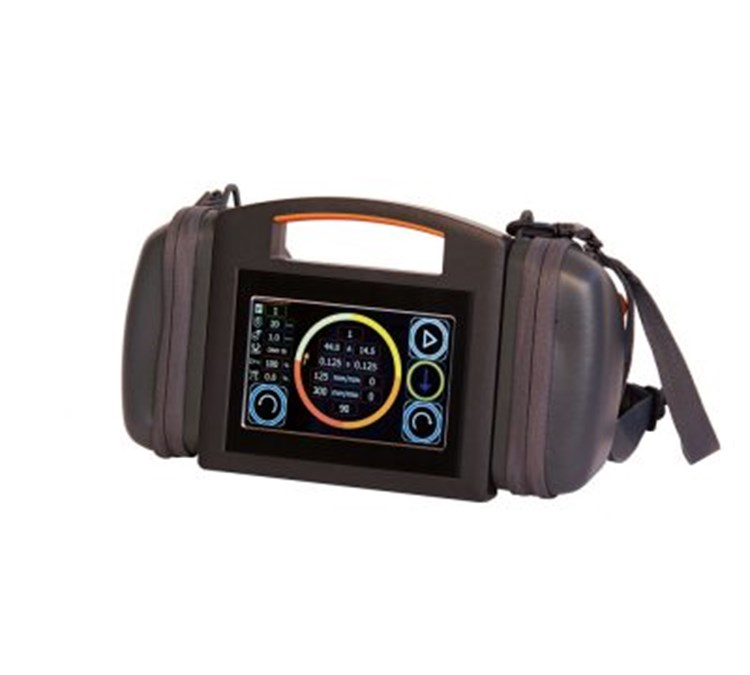

RC TOUCHONE (touchone)

The RC TouchOne is a mobile wireless remote control, which works with the BasicPlus orbital welding system. The components are composed as a modular system.

The easy operation guide and program-creation in smartphone-style (device calculates welding programs by itself) and the many possibilities of the easy usable software are outstanding. The operator can create welding programs and send them to the orbital welding machine. The same is for the documentation of the welding parameters. The operator has the possibility to customize the device to his needs. Easy and discreet notifications make the communication with the machine easier. A rash of helping functions are available for the operator. The most important functions and information can be seen and selected on the main screen.

The data between the RC TouchOne and the orbital welding machine are transmitted via Bluetooth class 1. This ensures a long and save tramission. The battery-block makes it possible to operate the device over a complete working day. After finishing, the device is put in the belonging charging-shell.

Electronic power supply: Input: 100-240 VAC, 50-60 Hz – Output: 27-33 VDC, 0,9 A
Supply voltage: 18 V DC
Dimensions L x W x H (mm): 85 x 355 x 205
Weight (kg): 1,9
Communication (Documentation, updates): 2 x USB
