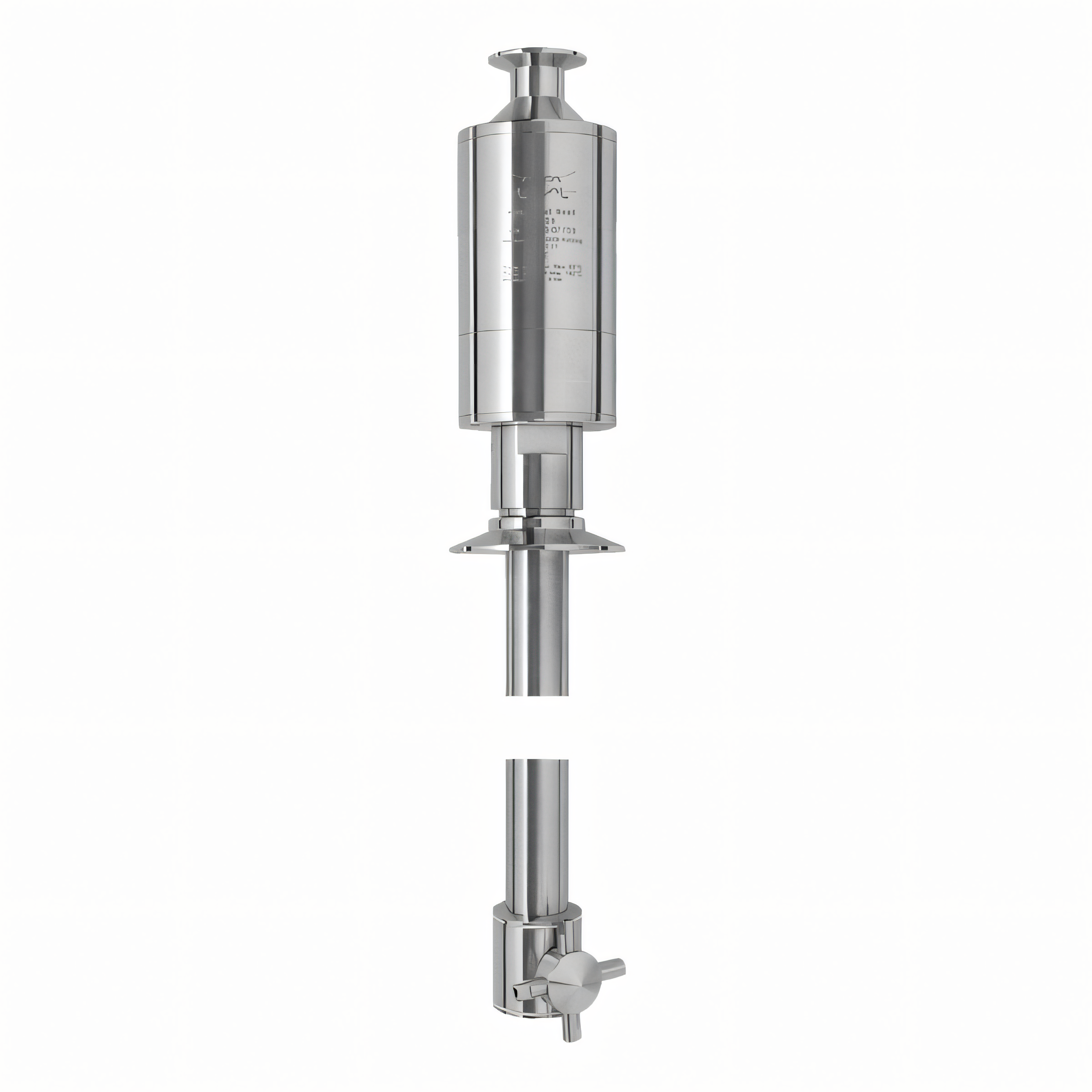

TZ-89 4x4/500 3/4
TZ-89 4x4/500 3/4

TZ-89 4x4/500 3/4''RPmxDN50flDIN (TE20A031)

Brand : Alfa Laval

You have to login to see the prices.

TZ-89 4x4/500 3/4"RPmxDN50flDIN
Model
TZ-89
Connection_Tank
DN50 Flange DIN2501
Flow_Rate
2 - 5
Inlet_Connection_Size
3/4" Rp male
Inlet_Connection_Type
Thread
Material
Stainless Steel/PEEK
NozzleConfiguration
4x4 mm
Pattern
360°
Down_pipe_Extension_length
500mm (DPL=246-438mm/9.7-17.2)
SurfaceFinish
Ra=1.0µm ouside and inside
Certification
2.1 Material certification available
Installation
External media drive and integrated down pipe
